Wit-Color Multicolor Digital Flatbed UV Printing Machine UVIP Epson 1316

Wit-Color Multicolor Digital Flatbed UV Printing Machine UVIP Epson 1316

Printing Width: 1.3m*1.6m

Print Head: Epson i3200

Print Head Quantity: 3/4 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Get The Best Price Download PDF

Product Video

Product Parameters

Features

Applications

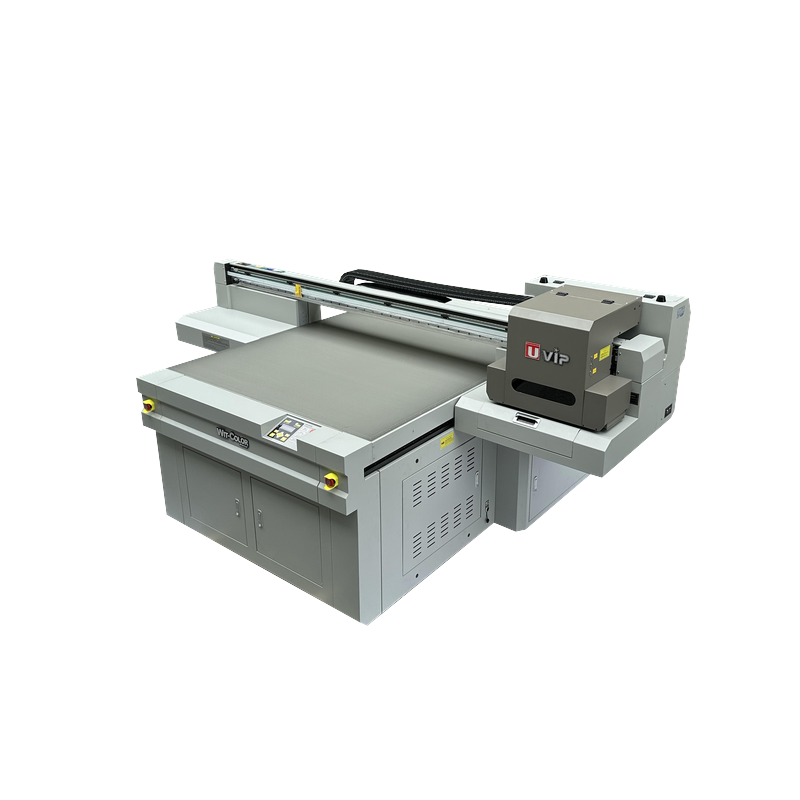

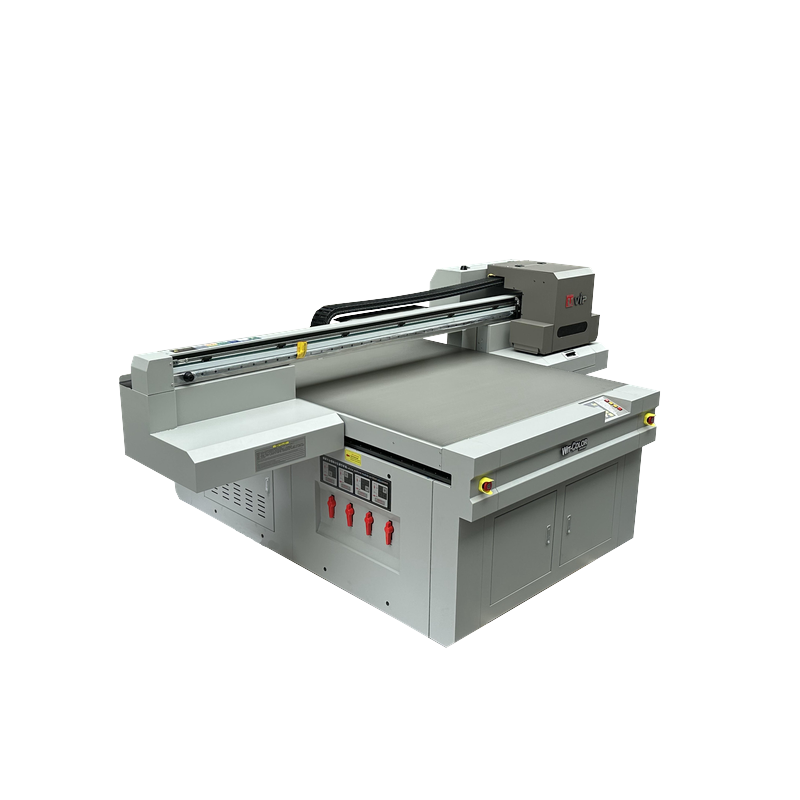

Wit-Color UV printer UVIP i3200 1316

For All Advertising Images Use with High Resolution

1. EPSON i3200 Print head

2. Max Printing area is 1.3m*1.6m

3. High Quality! High Resolution Better Pefermance!

Model	UVIP 1316
Printing Technology	UV Printing
Print Head	i3200
Acceptable Media	Type	Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc.
	Width	≦1300*1600mm
	Thickness	≦130mm

Ink Type	UV Ink: CMYK LCLM W V
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+LC, LM+W+Varnish
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Photoprint(Standard) PrintFactory/Onyx /Caldera(optional)
Printing Resolution	Maximum
Speed	Mode	Full Color	W+C	W+C+V
	High Resolution Mode	18㎡/h	12㎡/h	6㎡/h
	Standard Mode	27㎡/h	18㎡/h	9㎡/h
	Production Mode	36㎡/h	24㎡/h	12㎡/h
Ink Curing Method	Dual UV LED Lights
Control System	Win10
Power	3000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Air Source	N/A
Packing Dimension	Inch	L:80.71 x W:89.76 x H:63.78 1 Inch=25.4 mm
	Meter	L:2.05m x W:2.28m x H:1.62m
Printer Dimension	Inch	L:137.80 x W:90.55 x H:66.93 1 Inch=25.4 mm
	Meter	L：3.5x W：2.3m x H:1.7m
Weight	N.W 880 lb. 400kg 1kg =2.2 lb. G.W 1144 lb. 520kg 1kg =2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified

✱About 10% speed may vary from different feather printing mode and different PC configurations. All data are subject to change without prior notice.

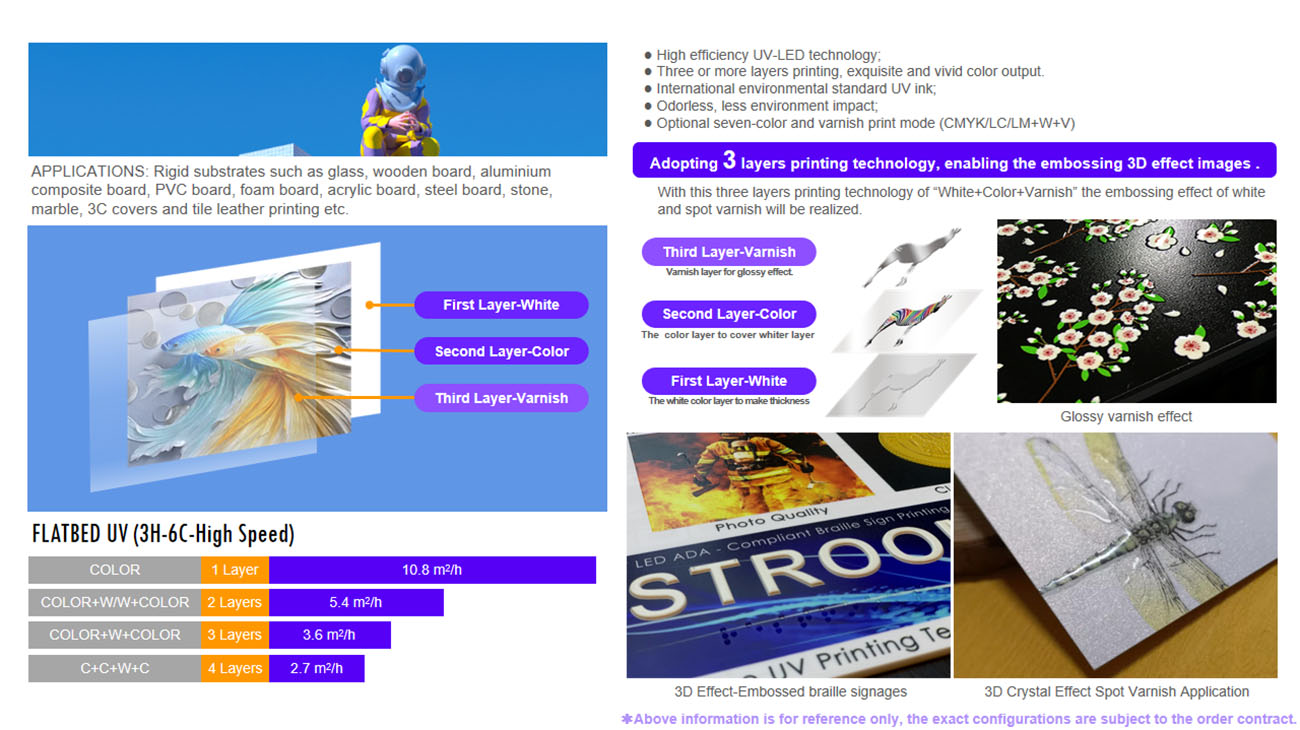

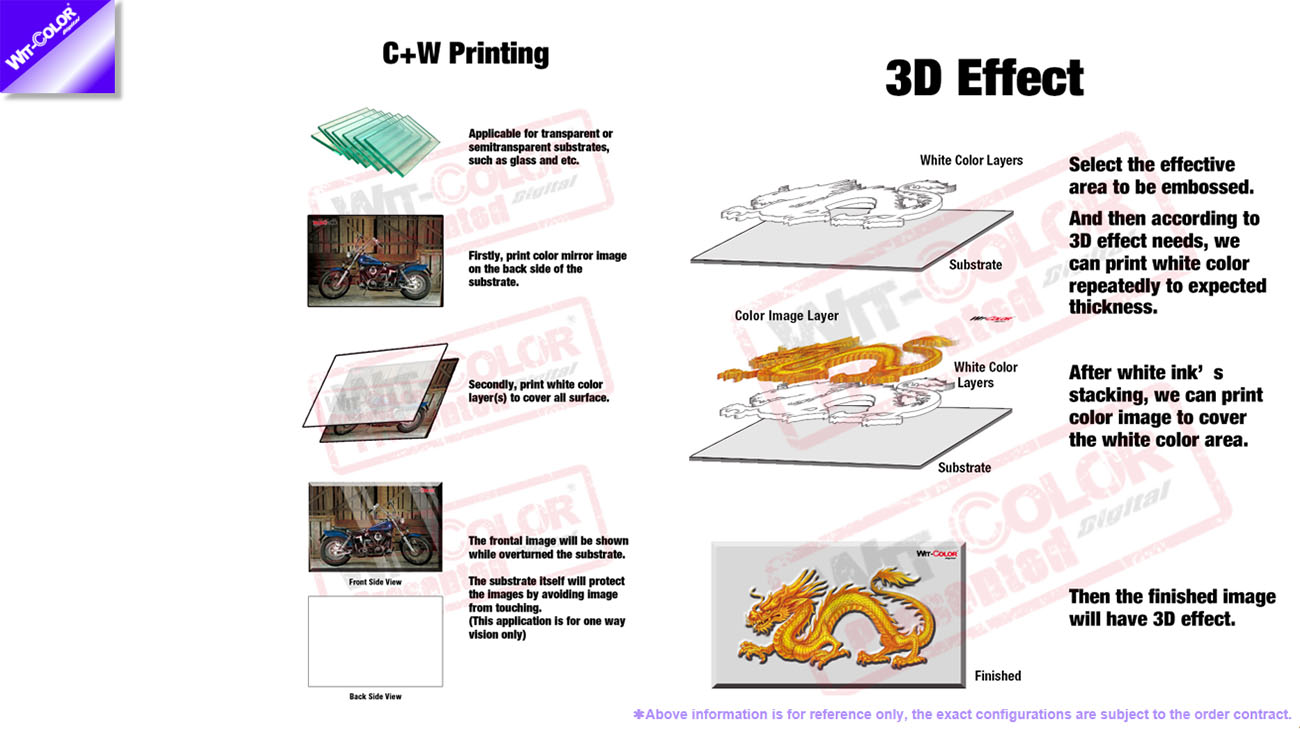

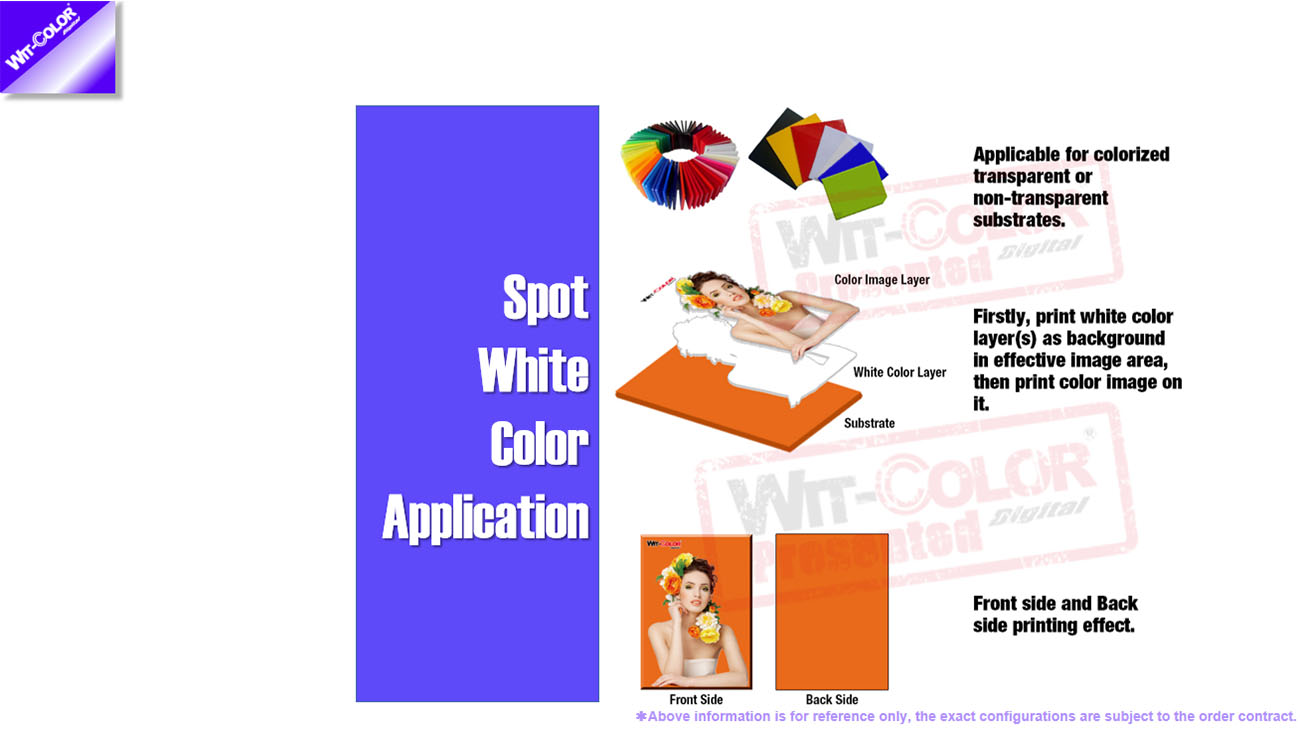

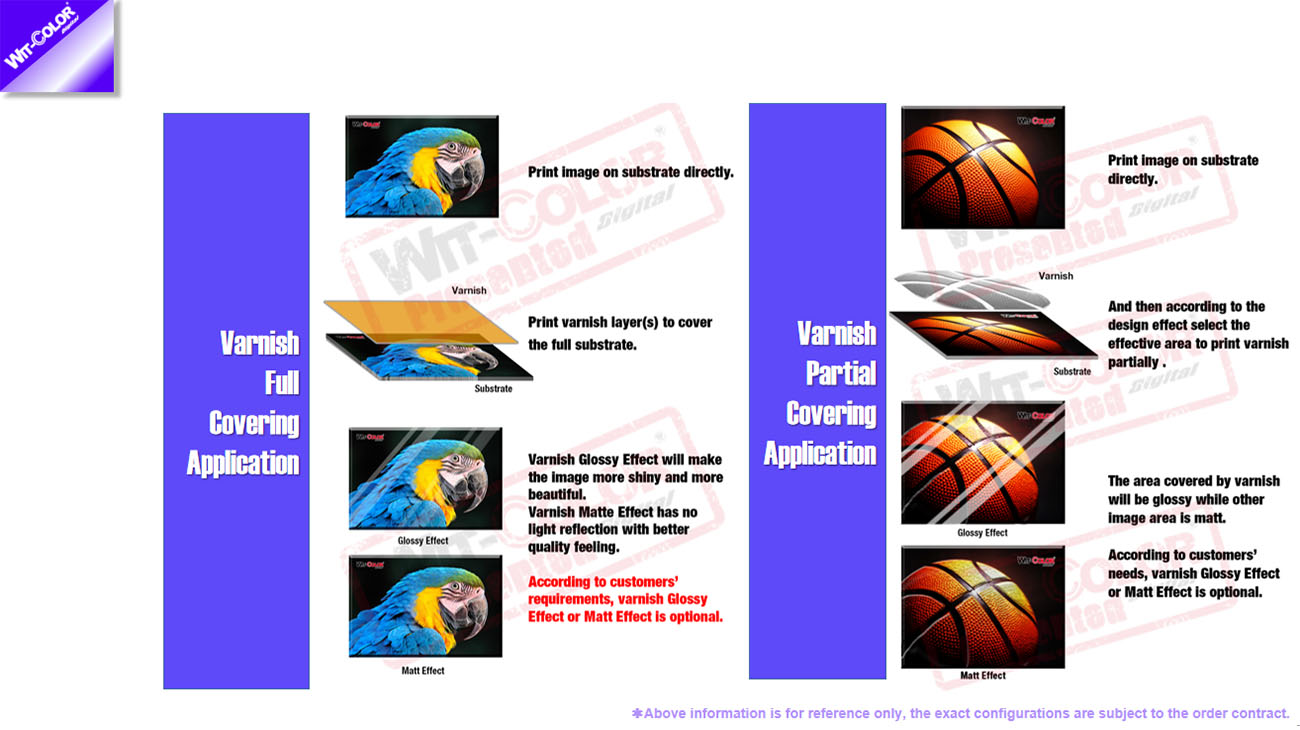

Application

High Quality Components

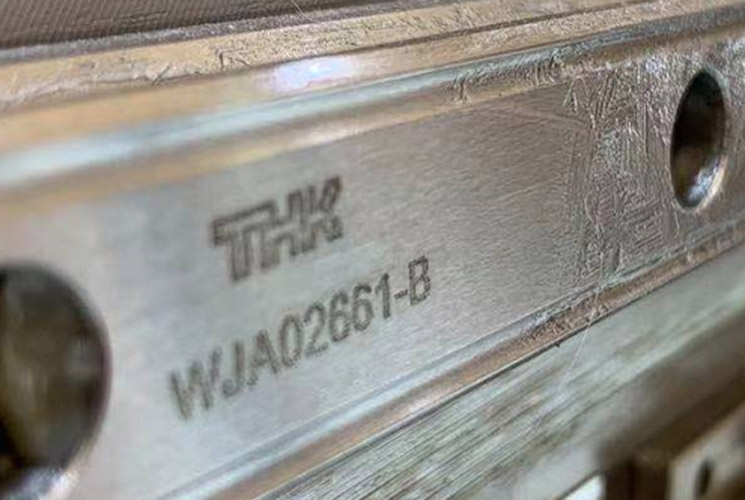

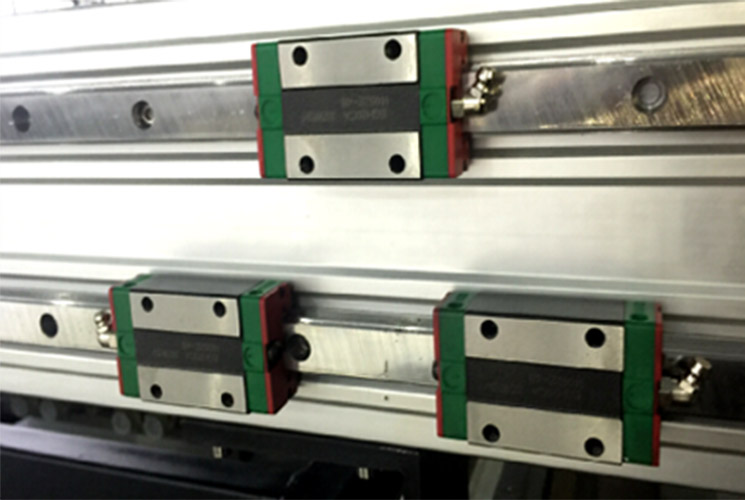

The Wit-Color UVIP i3200 1316 is equipped with high-quality guide rails and drag chains, ensuring superior wear resistance and reduced noise levels. This results in a smoother machine operation and enhanced printing quality, making it an ideal choice for businesses seeking precision and reliability in their printing processes.

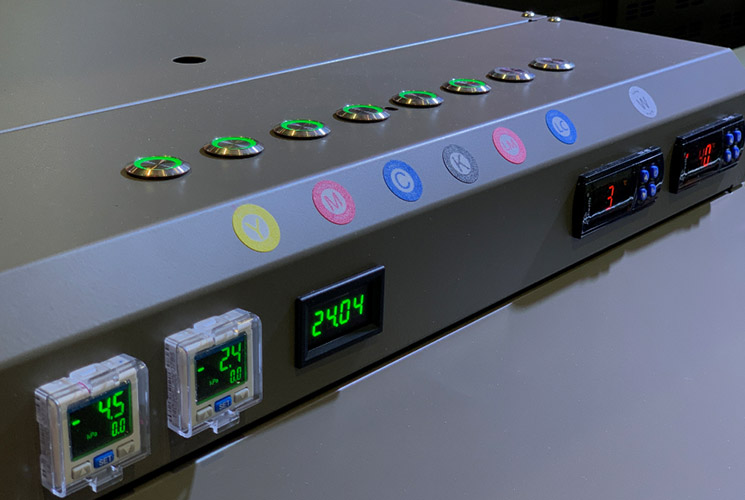

PH Flushing Control Panel

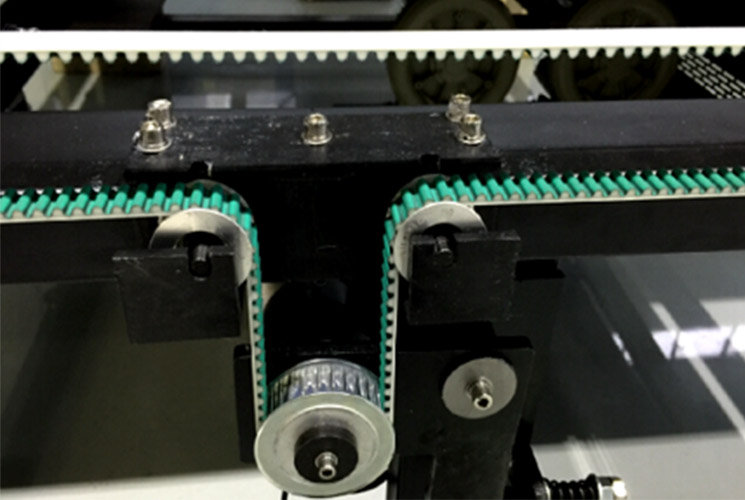

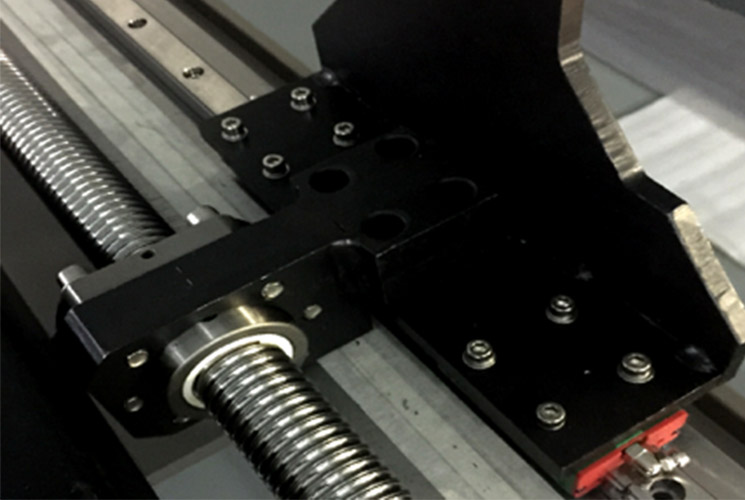

Passive Gear Assembly

Optical Data Transmission Tech

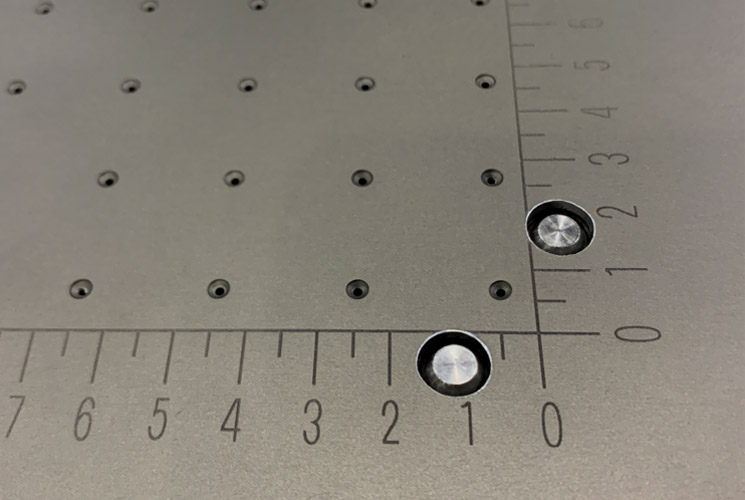

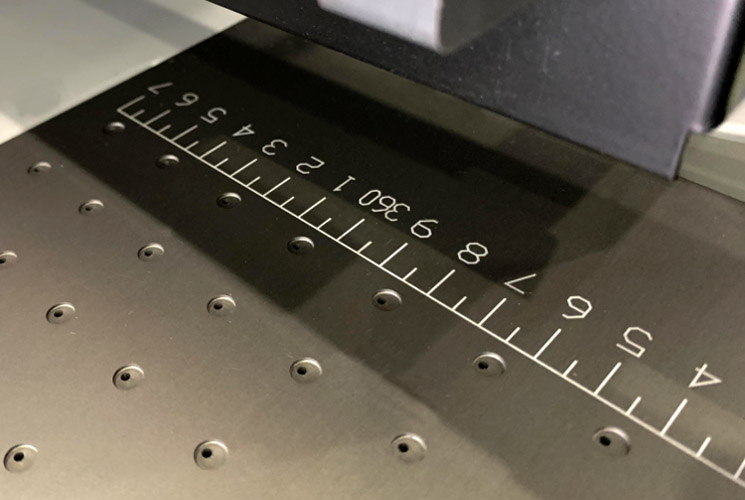

Printing Panel with Positioning Pins

Printing Panel

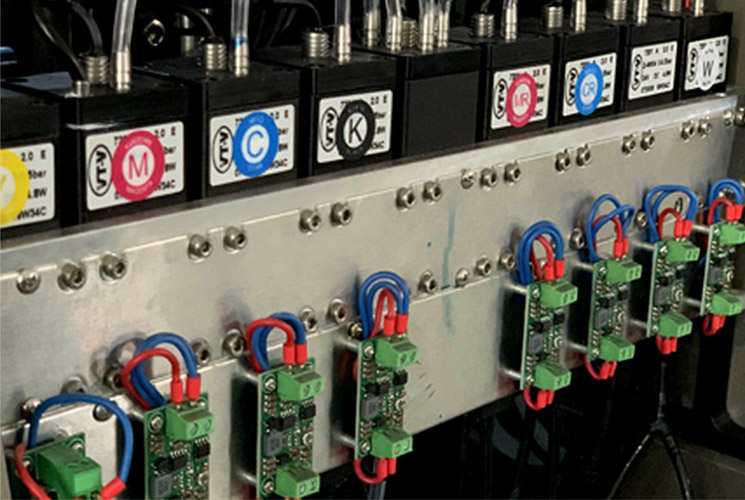

Secondary Ink Tank Heater

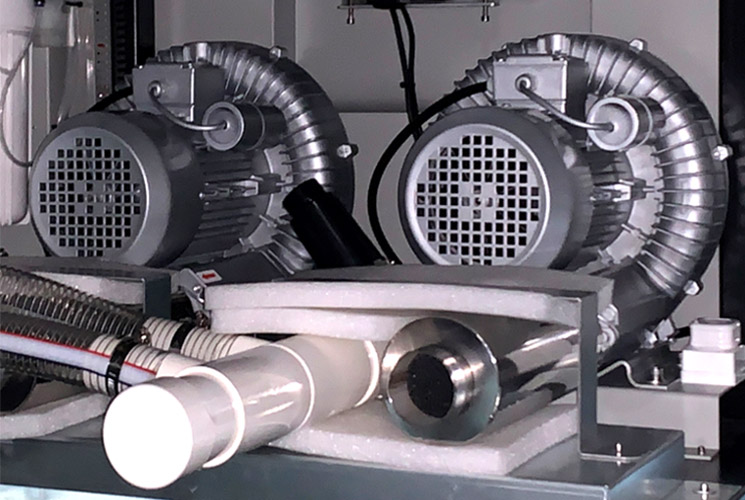

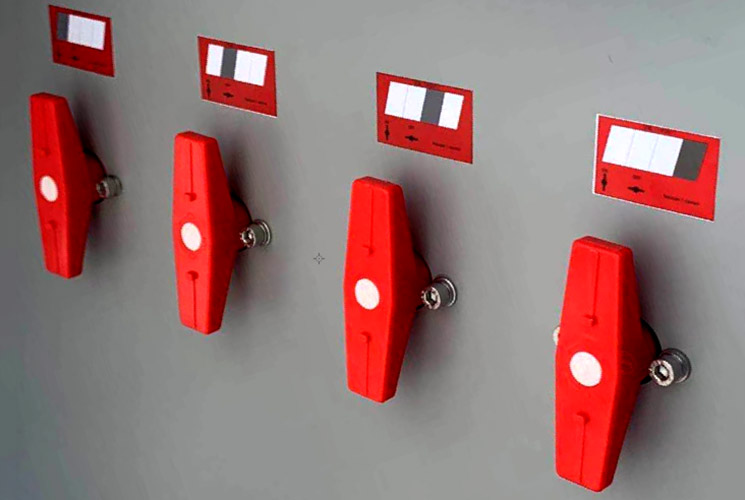

Sectional Vacuum Switch

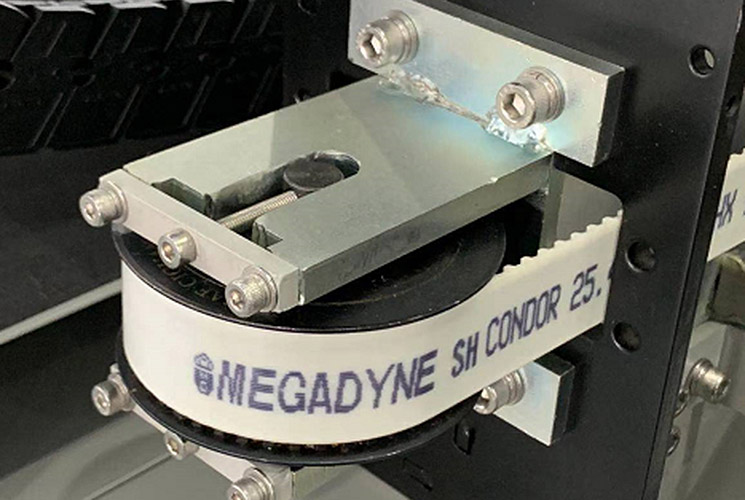

Italian Magadyne Timing Belt

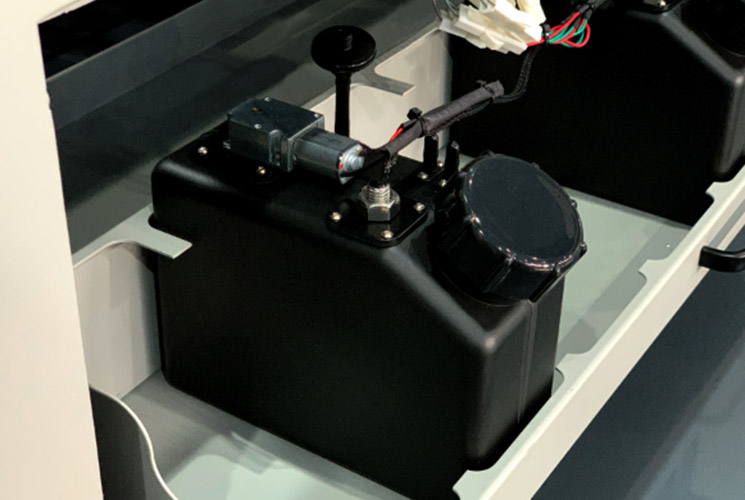

Ink Tank with Stirring

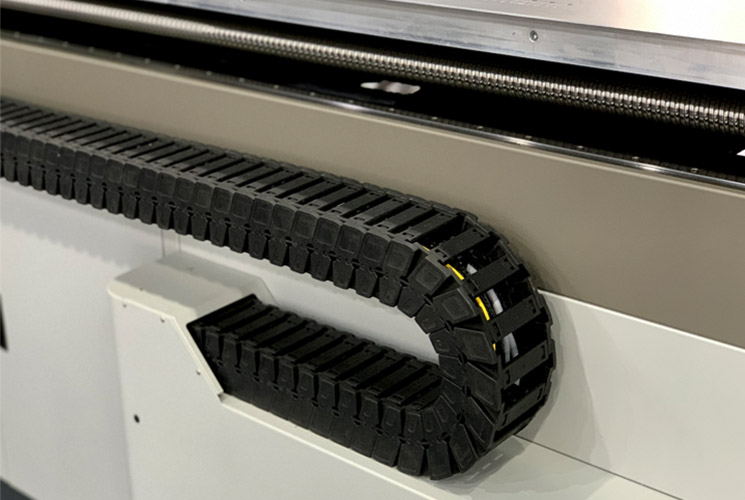

Germany IGUS Cable Carrier

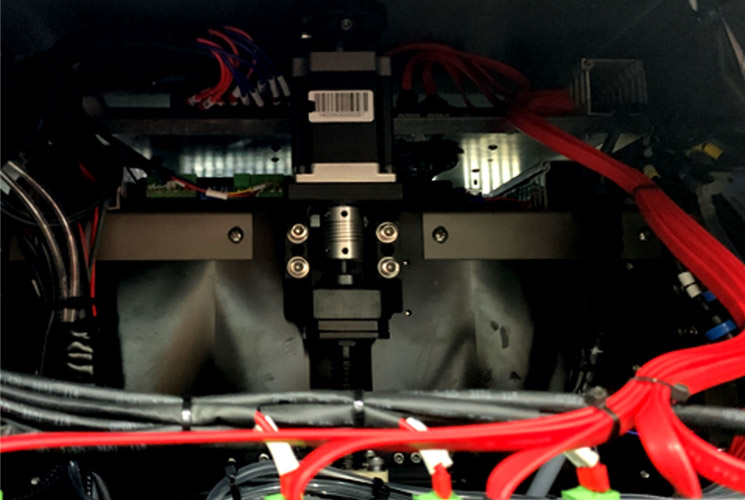

Carriage Auto-lifting System

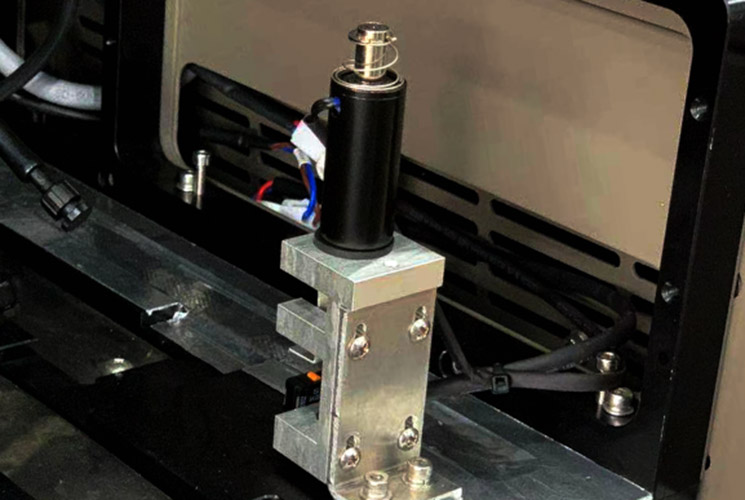

Auto-height Detector

0102030405060708091011121314151617

High Configuration

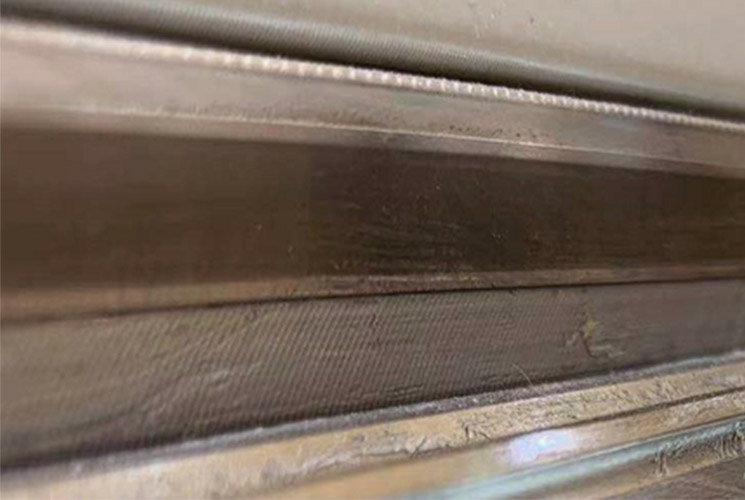

In addition to its advanced equipment, the UVIP i3200 1316 boasts high stability features that set it apart from other UV printers on the market. With a strong hard oxidation and segmented adsorption platform, as well as an all-steel welding frame square, this printer offers unparalleled stability during the printing process. The result is consistently high-quality prints that meet the exacting standards of professional printing applications.

Advanced Technology

Whether you are in the signage, packaging, or industrial printing industry, the Wit-Color UVIP i3200 1316 is designed to elevate your printing capabilities. Its combination of advanced equipment and high stability ensures that you can achieve superior printing results, regardless of the complexity of your projects.

Print Your Imagination

With the Wit-Color UVIP i3200 1316, you can expect exceptional performance, reliability, and efficiency, making it a valuable addition to any printing operation. Experience the difference that advanced equipment and high stability can make in your printing processes with the Wit-Color UVIP i3200 1316.
